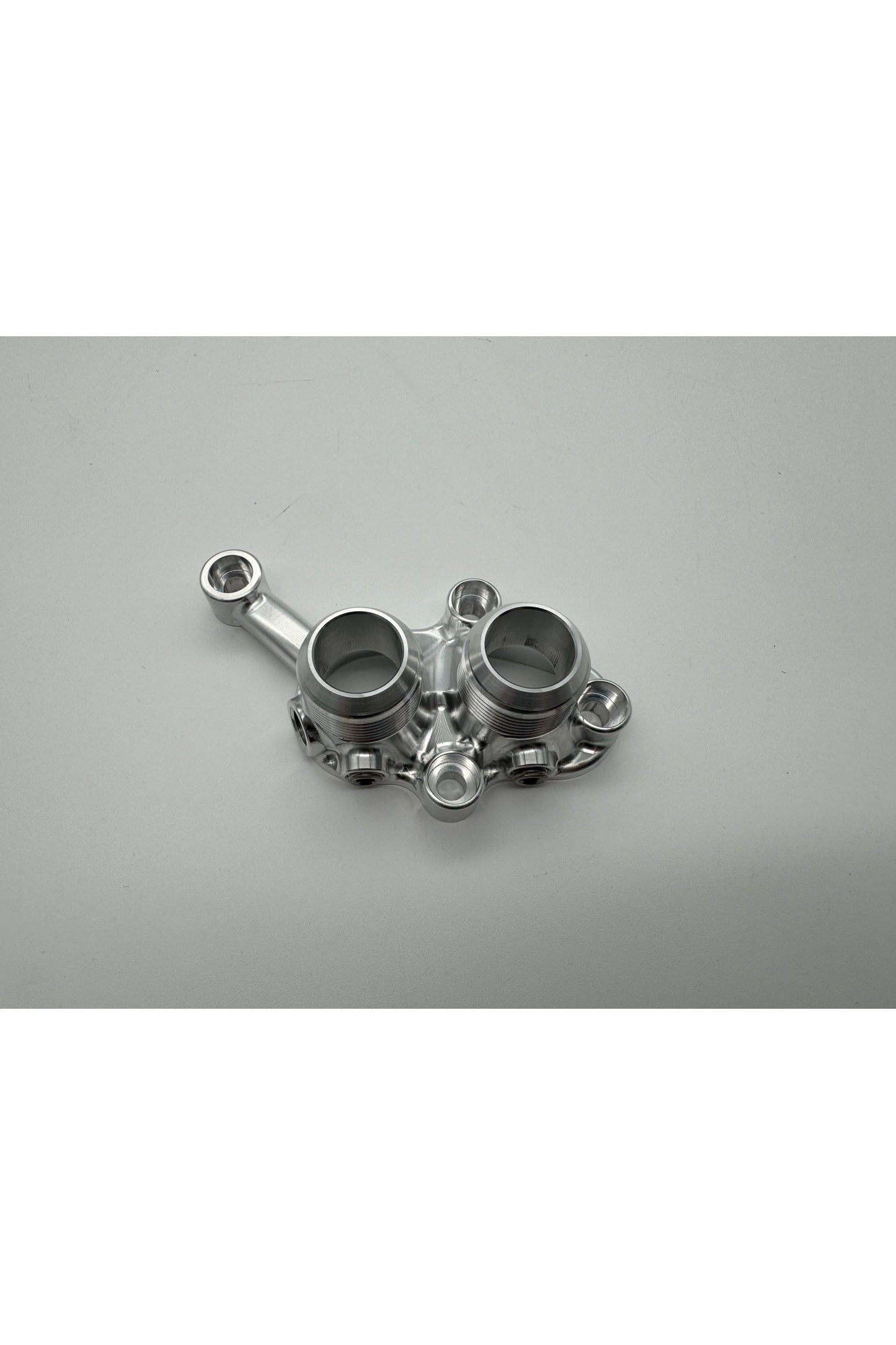

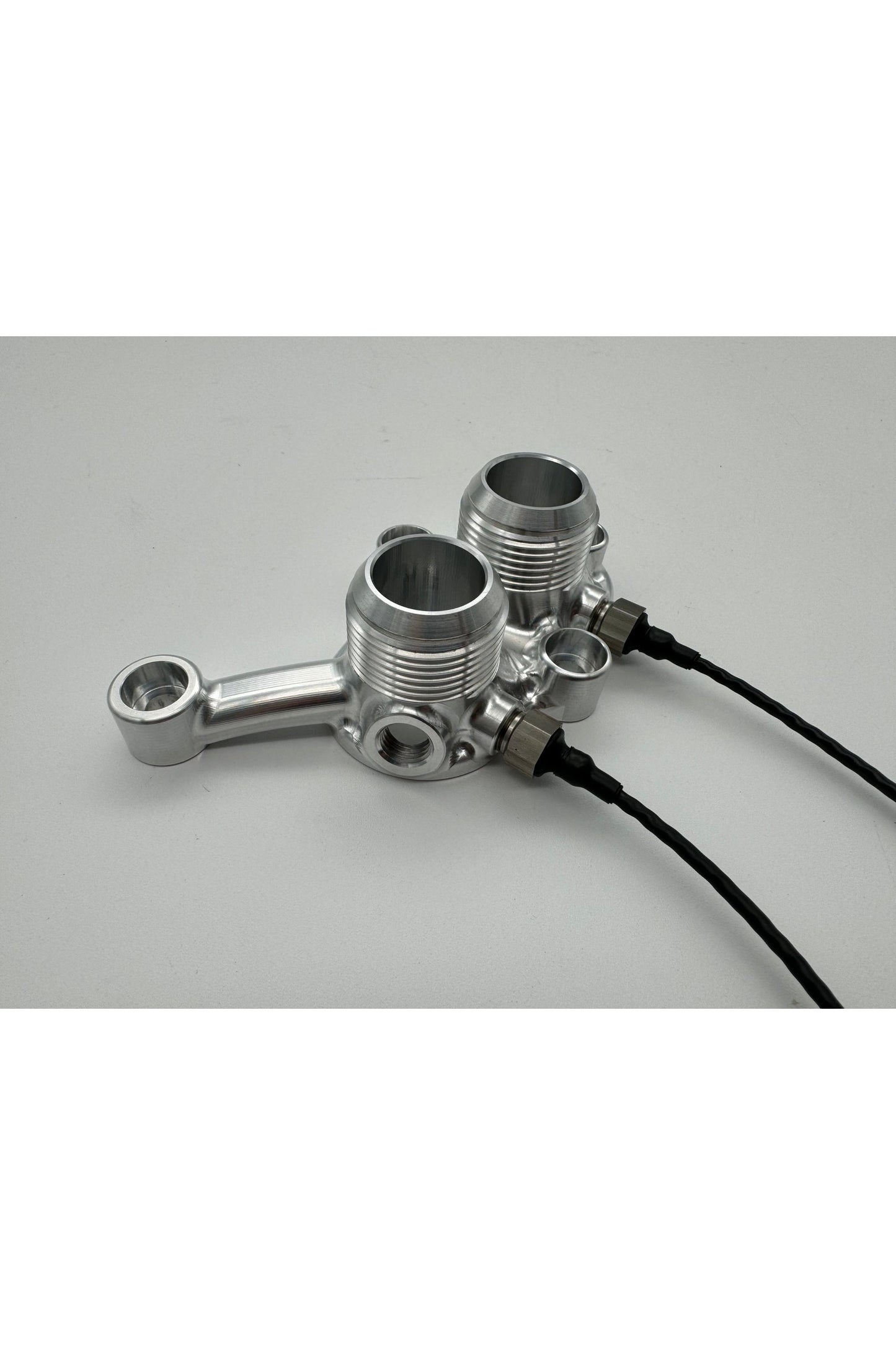

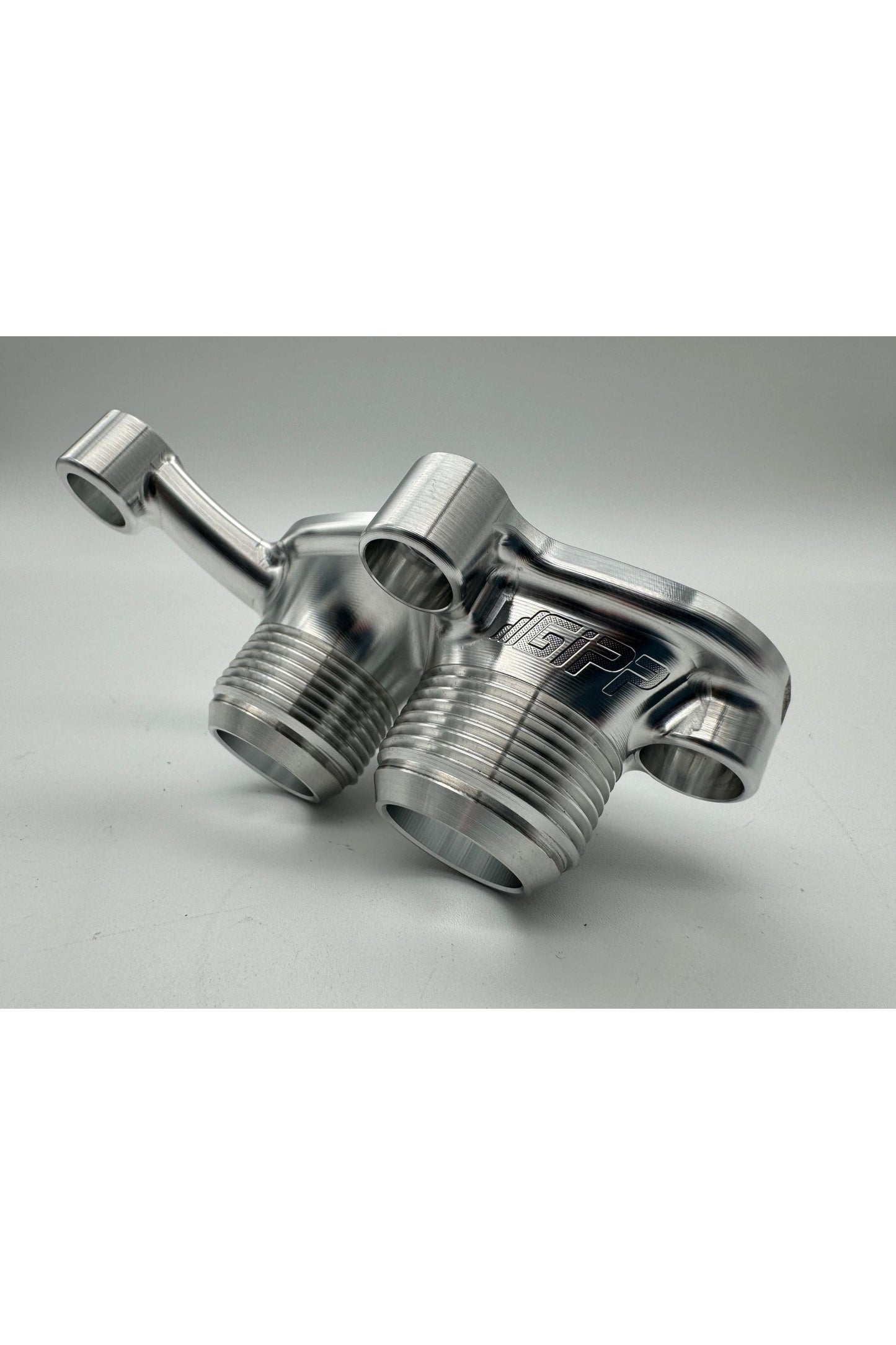

GIPP Electric Water Pump Adaptor

Overview

The GIPP Electric Water pump adaptor (EWP), compatible with FC, FD and Cosmo OEM Mazda cast plates and ALL GIPP Billet motor applications.

Every detail on this adaptor has been engineered to provide the utmost in cooling efficiency and peace of mind for your benefit. Compared to traditional electric water pump adaptors, it has been designed with in built -16AN fittings to eliminate potential failure points of EWPs with attached external fittings.  Inlet and outlet areas of the GIPP EWP have been designed for exceptional flow rate and cooling performance.

The GIPP Electric water pump also features 3 carefully thought out temperature sensor ports, allowing for your standard water temperature sensor with an additional 2 underside ports for logging in and outgoing water temperature in your engine. The low profile of this EWP makes suitable for applications with tight spaces with limited clearance. Sealing is provided by a machined O-ring groove and comes with the O-ring provided upon purchase.

Features

• Fully CNC Machined Electric Water Pump Adaptor
• Manufactured from certified ISO 9001:2015 6061 Billet Aluminium
• Flow optimised inlet and outlet
• Weighs a mere 150 grams
• Built in -16AN fittings, to reduce failure points in your cooling system
• 3 Water temperature ports - For standard water temperature sensor, incoming water temperature and outgoing water temperature.
• CNC Machined O-ring seal with provided O-ring
• 100% Designed and manufactured in Australia

Contents

GIPP Electric water pump adaptor standalone

• 1 x O-ring
• 4 x Bolts for install
• 2 x Block offs for inlet and outlet temperature sensor ports

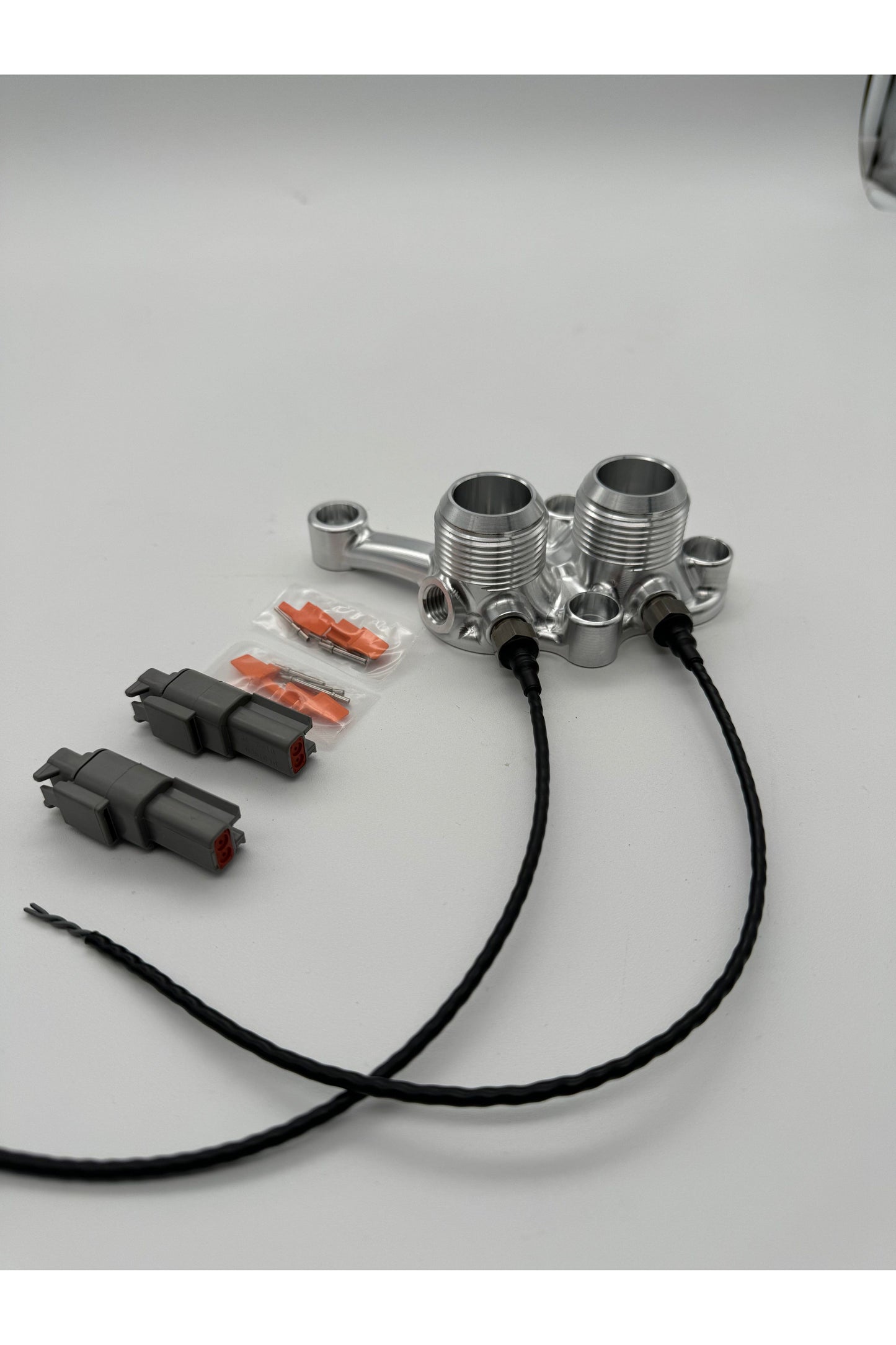

GIPP Electric water pump adaptor Kit

• 1 x O-ring
• 4 x bolts for install
• 2 x Block offs for inlet and outlet temperature sensor ports
• 2 x Water temperature sensors

Compatibility

• All GIPP Rotary billet engine plates

• FC version front plate
• FD version front plate
• Cosmo version front plate
