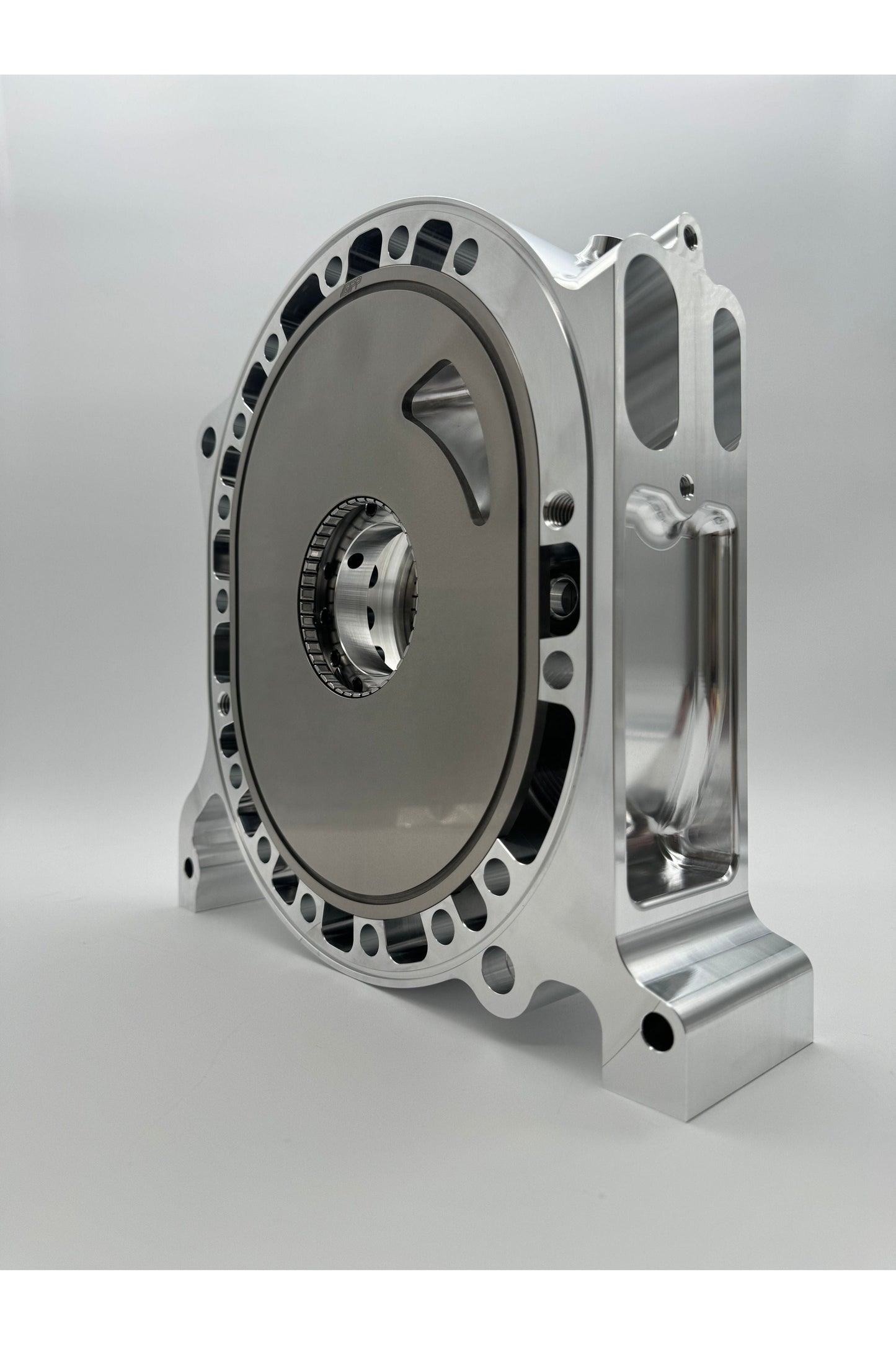

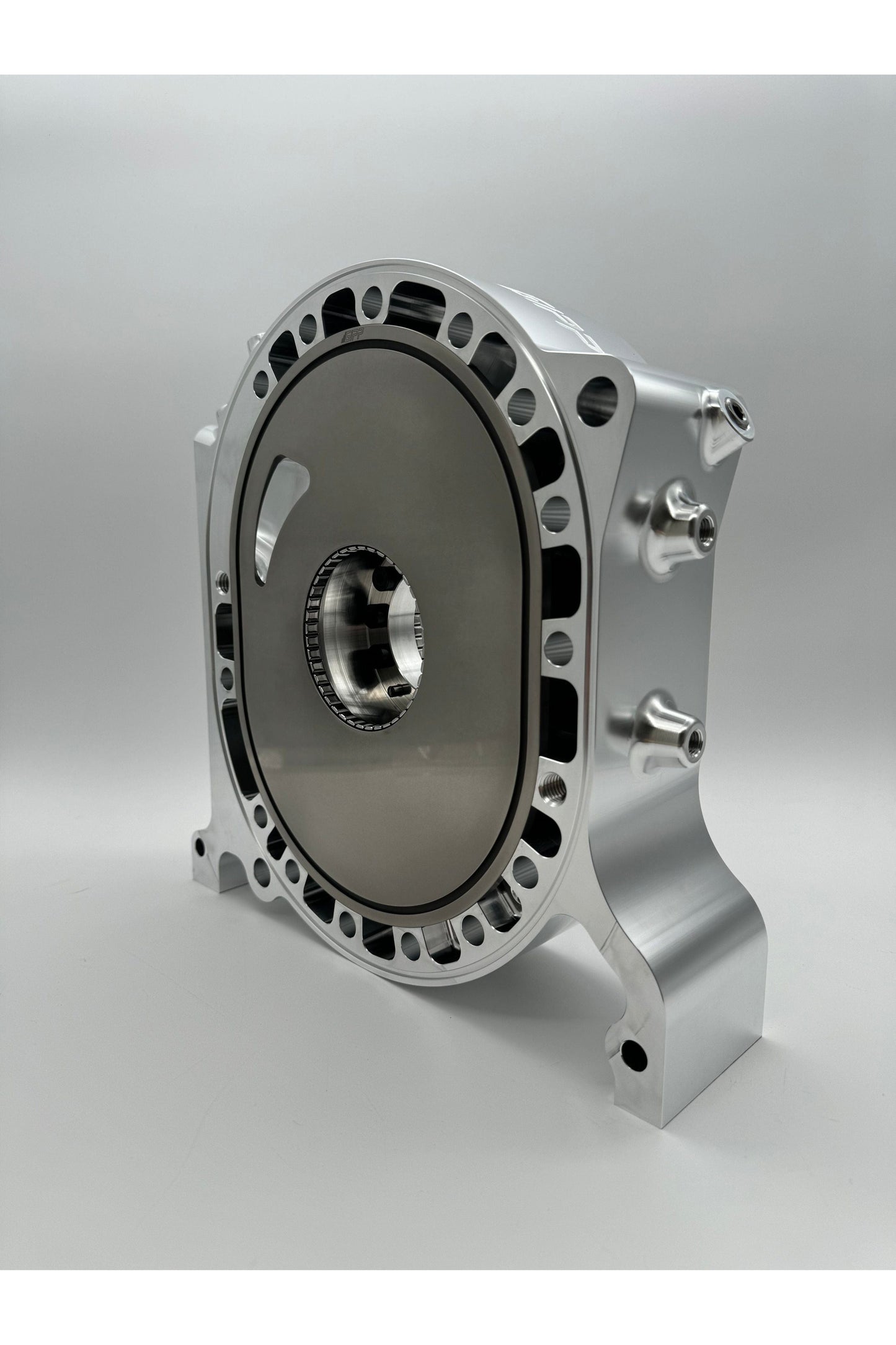

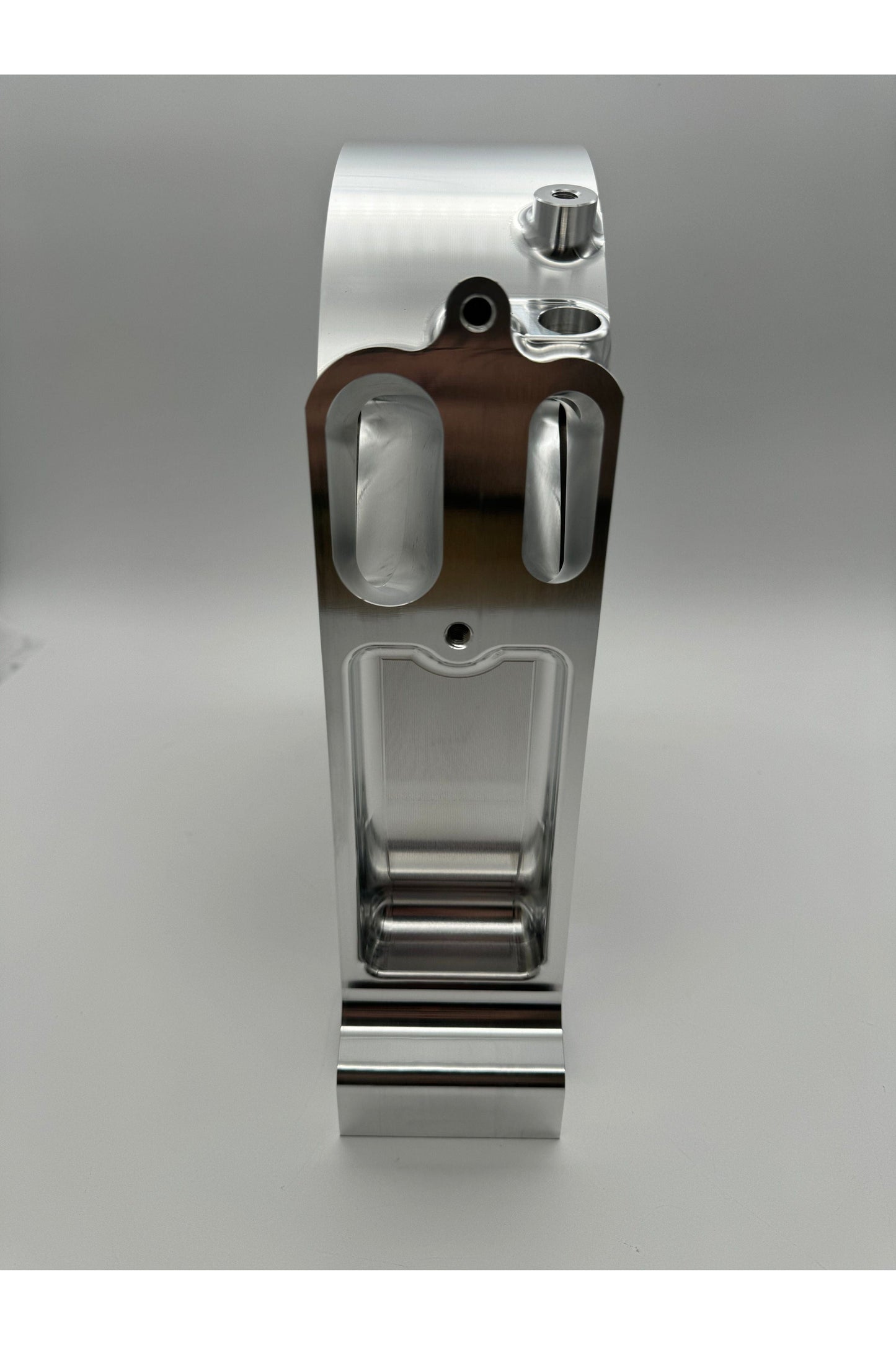

GIPP 7075 Billet 20B Intermediate plate

Overview

Whether you are hitting the tracks or cruising the streets, the GIPP Billet plate, forged from decades of racing experience will elevate the limits of your rotary engine. Crafted from aerospace grade 7075 billet Aluminium, our billet plates have been engineered to excel in extreme horsepower applications while retaining its street driving capabilities.

 Suitable for 20B race and street applications.

GIPP 7075 billet plates are out of the box replacements for your factory Mazda OEM plates. Sporting better strength, performance and longevity over traditional cast iron plates, our billet plates also feature flow optimised cooling and intake passages for superior engine performance. Every GIPP plate has been vigorously research and developed to retain a superior strength to weight ratio by removing unnecessary material from the billet plate.

With 100% CNC porting within our 5-axis machines, GIPP plates offer an instant upgrade in engine performance and is ported to much larger specifications than possible compared to factory OEM Mazda plates with no additional porting required. Custom porting options are available upon request.

Features

• Fully CNC machined and manufactured in Australia
• Meticulously crafted from high quality certified ISO 9001:2015 Aerospace grade billet aluminium
• Out of the box replacement for OEM Mazda plates
• Easily interchangeable cast iron plate face - Additional plates sold separately
• Precision machined to low micron level tolerances
• Engineered for maximum weight reduction while retaining strength, longevity and rigidity
• 100% CNC ported Cosmo intakes (Fully Compatible with Cosmo intake, FC and FD intakes require modification to maximize performance)
• Flow optimised CNC machined intake ports, much larger than what is possible compared to OEM Mazda Plates
• Flow optimised water cooling paths superior to OEM flow rates


Note: Anodizing is not available in 7075 series Billet Plates. It is only available in 6061 series Billet plates.

Contact us through our contact us page HERE if you have further questions about this product and our team would be happy to assist you.
